1000kg Stage Chain Hoist Flight Case Package With 4-channel Control Box

Name: 1000kg Stage Chain Hoist Flight Case Package With 4channel Control Box
Brand: JCYC
Price: 1 USD

Wholesale 1000kg Stage Chain Hoist Flight Case Package With 4-channel Control Box from china suppliers

Warranty : 2 year

Standard : CE

Lift Chain : G80

Brand Name : JCYC

Model Number : HHD

Certification : CE

Place of Origin : China

MOQ : 2 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 pcs / week

Delivery Time : 5 working days

Packaging Details : Wooden or flight case

Power Supply : 3P 220V 50/60Hz

Weight : 50 kg

Ins Class : F

Liftingcapacity : 0.5 ton to 2 tons

Working Degree : -40 - 40 degree

Key Words : Electric Chain Hoist, Electric Trolley

Motor Power : 750W

Noiselevel : < 75 dB

Lifting Chain : G80

Product name : Stage Chain Hoist

Usage : Construction hoist

Contact Now

1000kg Stage Chain Hoist Flight Case Package With 4-channel Control Box

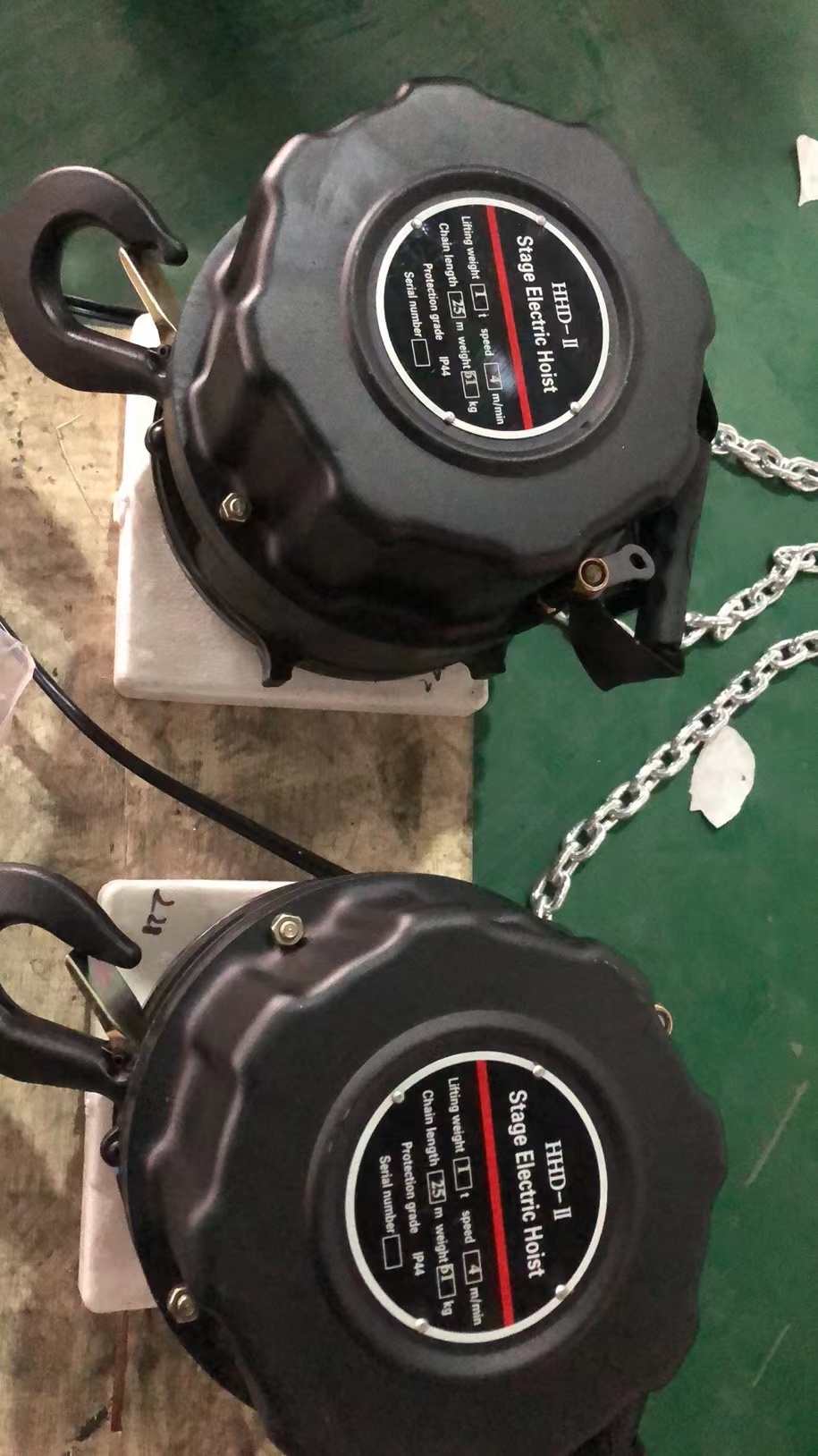

Professional Stage Chain Hoist

This product is specially designed for professional stage lighting, sound systems, performances, and other high-altitude installation applications, such as suspended inverted installations and elevated construction operations.

Compact and lightweight design for easy installation and operation
Single-phase power supply provides convenient access, saving installation time and improving work efficiency
Reliable braking system with safety protection that ensures secure operation and extended service life
Made of Grade 80 alloy steel chain with 3-fold safety factor for high strength and excellent durability
Professional chain guide wheel system ensures smooth chain movement, prevents jamming and twisting
Nylon chain guide has service life more than five times longer than conventional designs
Separate connector-type synchronous controller available for single or multiple hoists operating synchronously
Optional 4-channel, 8-channel, 12-channel, and multi-channel control boxes for synchronized control

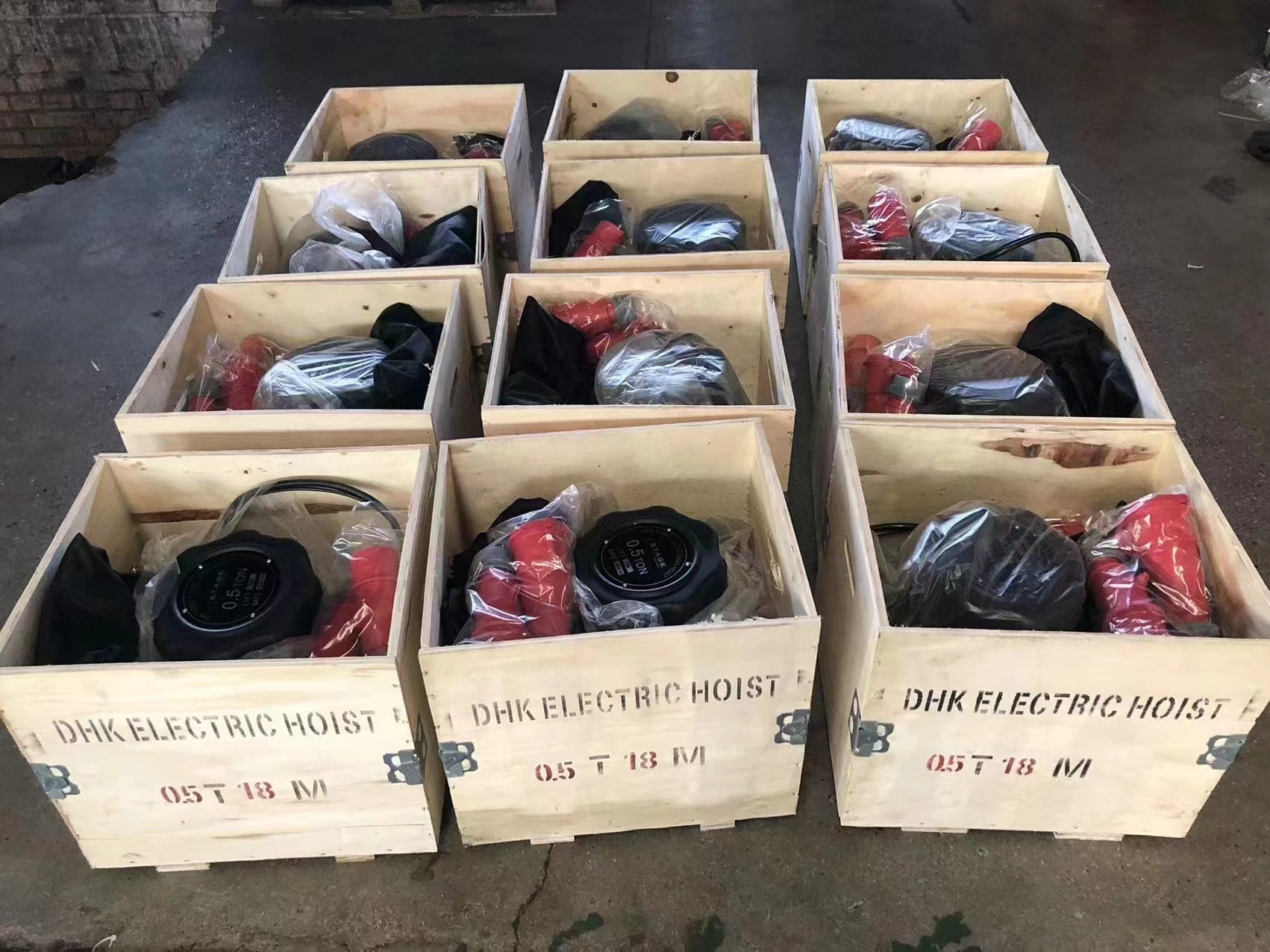

Optional flight case (air box) package for professional protection and convenient transportation

Product Specifications

1000kg Stage Chain Hoist Flight Case Package With 4-channel Control Box

Item	Specification
Rated Load Capacity	1000 kg
Product Dimensions	306 × 235 × 235 mm
Net Weight	30 kg
Material	Alloy Steel
Chain Length	Optional
Chain Color	Galvanized White (Black Optional)
Load Chain Specification	8 × 24 mm
Chain Safety Factor	8 Times Breaking Load
Chain Weight	1.33 kg/m
Number of Chain Falls	1 Fall
Chain Bag	Included
Brake System	Single Brake
Protection Class	IP54
Motor Model	YHPE750-4
Standard Power Supply	Three-phase 380V / 50Hz
Optional Voltage	110V-440V (Customized)
Duty Cycle	40% ED (JC)
Motor Insulation Class	Class F
Motor Power	750 W
Motor Speed	1380 rpm
Overload Protection	Mechanical Overload Protection Device
Limit Switch	Electronic Limit Switch
Lifting Speed	4 m/min
Noise Level	≤60 dB
Packing Size (Wooden Case)	540 × 390 × 285 mm
Packing Size with Flight Case	610 × 450 × 560 mm
Warranty	2 Years
